Equipment parameters |
|
|
Laser |

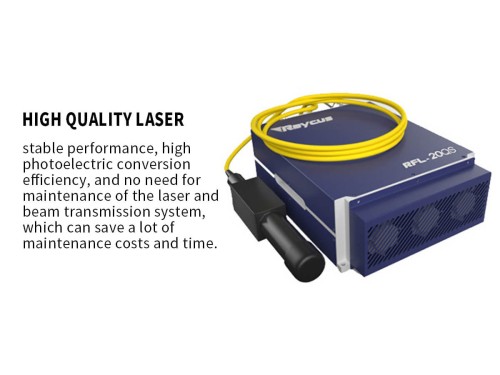

fiber laser generator |
|
output power |
20W,30W,50W |
|
Marking range |
70mm*70mm, 100mm*100mm (optional) |
|
master control |
Integrated motherboard |
|
operating system |
Linux |
|
Laser wavelength |
1064nm |
|
Focus lens |
130mm |
|
Deflection mirror |
High precision dual dimensional scanning system |
|
Marking and engraving type |
Dot matrix and vector all-in-one machine |
|
line width |
0.03mm |
|
Repetitive positioning accuracy |
0.01mm |
|
Positioning method |
Red light positioning, focusing |
|
Marking speed |
<7000mm/s |
|
Printing speed |
800 Characters. (Related to material and content) |
|
Marking characters and lines |
Any within the effective range |
|
file format |
BMP/DXF/HPGL/JPEG/PLT |
|
bar code |
CODE39/CODE128/CODE126/QR |
|
Typeface |
Standard character libraries for Chinese, English, numbers, traditional Chinese, etc |
|
Power Supply |
110V/220V. (Lithium batteries can also be used) |
|
Whole machine power |
140-250W |
|
Operating temperature of the whole machine |
0-40℃ |
|
Whole machine weight |
6-7Kg |
